UltraMag™ MAGNETIC Extrusions and Strips

UltraMag™ MAGNETIC Extrusions and Strips

UltraMag™ magnetic substrate is the workhouse of the sign and display market. Flexmag’s custom designed magnetic extrusion and custom cut parts are designed to fit your specifications. Standard and high energy strip can be magnetized with the correct pattern for your application, or not magnetized. Strip also available with pressure sensitive adhesive backing or custom lamination.


Applications

  • Gaskets and Holding:
    Shower doors, Freezers/Refrigerators, Windows
  • Automated Guided Vehicle Sensors
  • Indoor and Outdoor Advertising
  • POP and Inventory Control Shelf Displays and Dividers
  • General Signage

Magnetic Properties of Ultra-Mag Standard

Maximum Energy Product (BHmax x106)
.65
Residual Induction Br (gauss)
1650
Coercive Force Hc (oersteds)
1400
Intrinsic Coercive Force Hci (oersteds)
2200

Physical Properties of Ultra-Mag Magnetic Extrusions

Higher energy values available upon request.

Specific Gravity
3.7
Hardness
Shore D52
Ultimate Tensile Strength psi
1000

Patterns of Magnetization

conventional-through-thickness
(1) Conventional Through Thickness
through-width
(2) Through Width
 -poles-on-one-side
(3) 2 Poles One Side
multiple-poles-on-one-side
(4) Multiple Poles One Side

Typical Examples of Ultra-Mag Custom Made Shapes

Extruded:

extruded-

extruded-

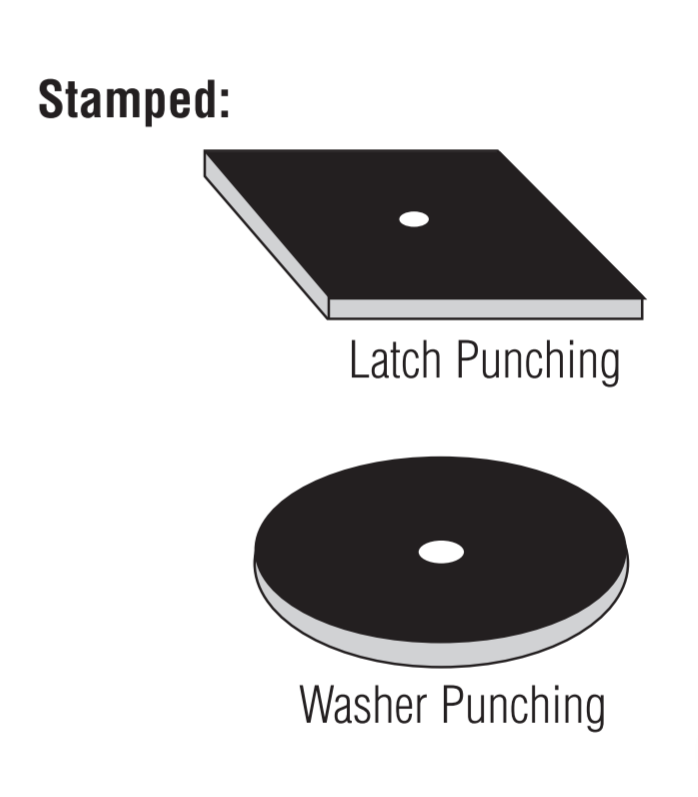

Stamped:
